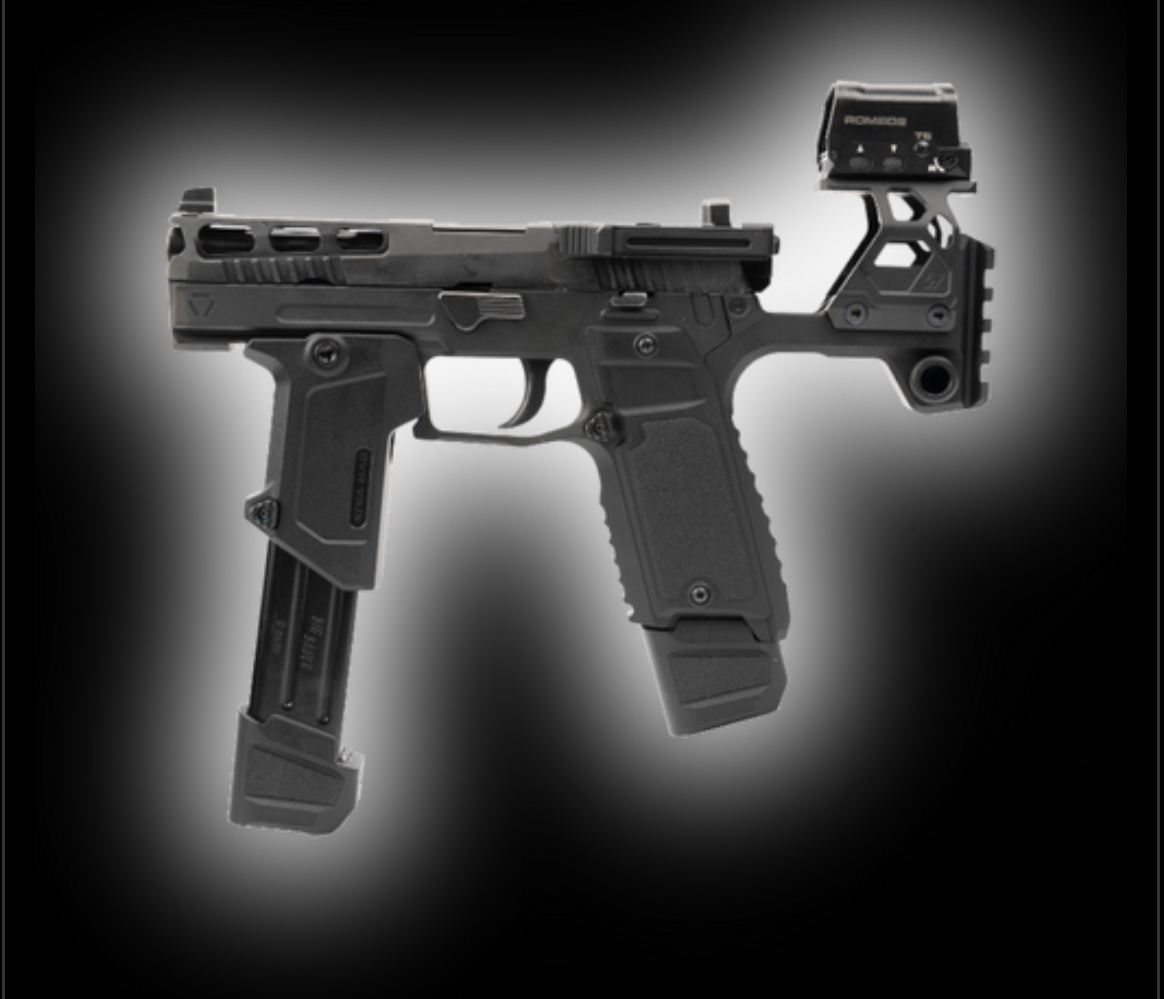

Strike Modular Chassis (SMC) by Strike Industries

The most modular SIG SAUER P320/M17/M18 grip module/chassis in the world
-Over 20+ configurations with included and optional Strike Modular Chassis (SMC) parts and accessories
-Included Ambidextrous Side Charging Handle with Slide Cover Mount
-Works with SMC Rear Module Backstrap (included) and can be configured as a conventional P320 grip module with optional SMC LITE Backstrap (sold separately)
-SMC Multi-Optic Mount (Footprints: C-More, DeltaPoint Pro, Docter/Noblex, RMR, Shield and all SIG SAUER Open Reflex Sights)
-Ambidextrous QD sockets located on SMC Rear Module Backstrap
-Picatinny rail located at front bottom of chassis and on Rear Module Backstrap for accessories
-Optional to use Spare Magazine Holder for SIG SAUER P320 with SI Modular Magazine Release is included
-SMC ALPHA for SIG SAUER P320 (Standard) uses SIG SAUER P320 OEM fitment takedown lever and P320 magazine release, SI Modular Magazine Release is pre-assembled and included
-Machined from 6061-T6 aluminum, sturdier and more durable than polymer

Package Contents:
-x1 SMC – ALPHA GRIP MODULE/CHASSIS with SMC Grip Panels, SI Modular Magazine Release [w/ extended button] and Rear Module Backstrap [w/ QD sockets] (fully assembled)
-x1 Ambidextrous Side Charging Handle
-x1 Slide Cover Mount for Ambidextrous Side Charging Handle
-x1 Screw for Ambidextrous Side Charging Handle to Slide Cover Mount [M4x8mm T20 Rounded] -x2 Rubber pad for Ambidextrous Side Charging Handle bar [back side facing slide] -x1 Spare Magazine Holder for SIG SAUER P320 with SI Modular Magazine Release [w/ extended button] (fully assembled)
-x1 Screw for Spare Magazine Holder for SIG SAUER P320 [M5x30mm T27 Socket Head] -x1 Nut for Spare Magazine Holder for SIG SAUER P320 [M5 Hex] -x1 Multi-Optic Mount
-x4 Screw for Multi-Optic Mount [M4x7mm T25 Socket Head] -x3 Screw [M3x8mm T10 Flat] -x3 Screw [M3x9mm T10 Flat] -x3 Screw [M3x10mm T10 Flat] -x3 Screw [M3x14mm T10 Flat] -x3 Screw [M3x15mm T10 Flat] -x3 Screw [M3x7mm T10 Rounded] -x3 Screw [M3x8mm T10 Rounded] -x3 Screw [M3x10mm T10 Rounded] -x3 Screw [M3x11mm T10 Rounded] -x5 Large mounting post
-x5 Small mounting post
-x5 Shallow mounting post
-x3 Tall mounting post
-x1 Torx tool [T10] -x1 Torx tool [T20] -x1 Torx tool [T25] -x1 Torx tool [T27] -x1 Loctite® Threadlocker Blue 243®
-x2 Warning card
-x1 SMC Enamel Pin
-x1 SMC Sticker

COMPATIBILITY:
-Calibers: 9mm/.357SIG/.40S&W
-FCU: All SIG SAUER P320 FCUs which include XSeries as well as M17/M18 with complete function of the manual safety. For SMC use with M17/M18 manual safeties, the notch on the chassis is visible and outlined as a guide for the modification needed to be performed for the manual safeties to be usable.
-Triggers: We only guarantee proper fit and function with SIG SAUER OEM triggers. SI cannot guarantee safety and function on aftermarket triggers and components. The SMC is made to fit the OEM standards of the SIG SAUER FCU.
-Slide Lengths: The SMC will work with all P320 slide and barrel lengths but best matched on ALPHA for SIG SAUER P320 (Standard) with 4.7″ slide or ALPHA for SIG SAUER P320 (Standard) with 3.9″ slide using SMC Chassis Mounted Compensator (sold separately). ALPHA for SIG SAUER P320 (Standard) not suggest with 3.6″ slide.
-Slide Length Note: Any slide size shorter mentioned in “-Slide Lengths:” will have a gap from the front of the slide/muzzle to the front of the SMC chassis front end
-Chassis Mounted Compensator (sold separately): MUST BE USED with Carry 3.9″ length slide to cover the gap between the front of the Carry 3.9″ length slide/muzzle to the front of the SMC chassis front end. Example images and video will be shown on product page. Currently no plans to produce a SMC Chassis Mounted Compensator for Compact/Subcompact 3.6″ length slide
-Magazine Fitment: P320 17-round, 18-round, 21-round and up INCLUDING 10-round (full size length, not compact) magazines
-Holster: Works with many (but not all) P320 holsters (options w/o or w/ weapon light) matching slide length on the market without the use of Spare Magazine Holder for SIG SAUER P320
NOT COMPATIBLE:
-.45ACP FCU/Calibers
-10mm FCU/Calibers

RED DOT COMPATIBILITY:
-C-MORE, DELTAPOINT PRO, DOCTER/NOBLEX, RMR STANDARD, SHIELD STANDARD & all SIG SAUER Open Reflex Sights
-When using screws provided in the package, there is always a chance of hardware marring your optic housing finish/coating
-Be careful and use your best judgment on which hardware to use for your specific setup
-All installations should only be done by a certified professional gunsmith and properly tested to pass all safe and function tests
