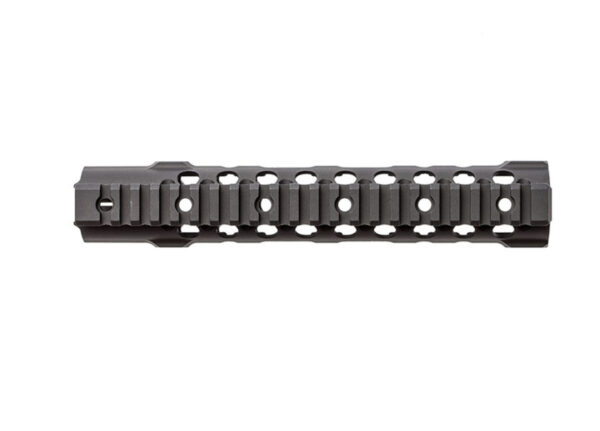

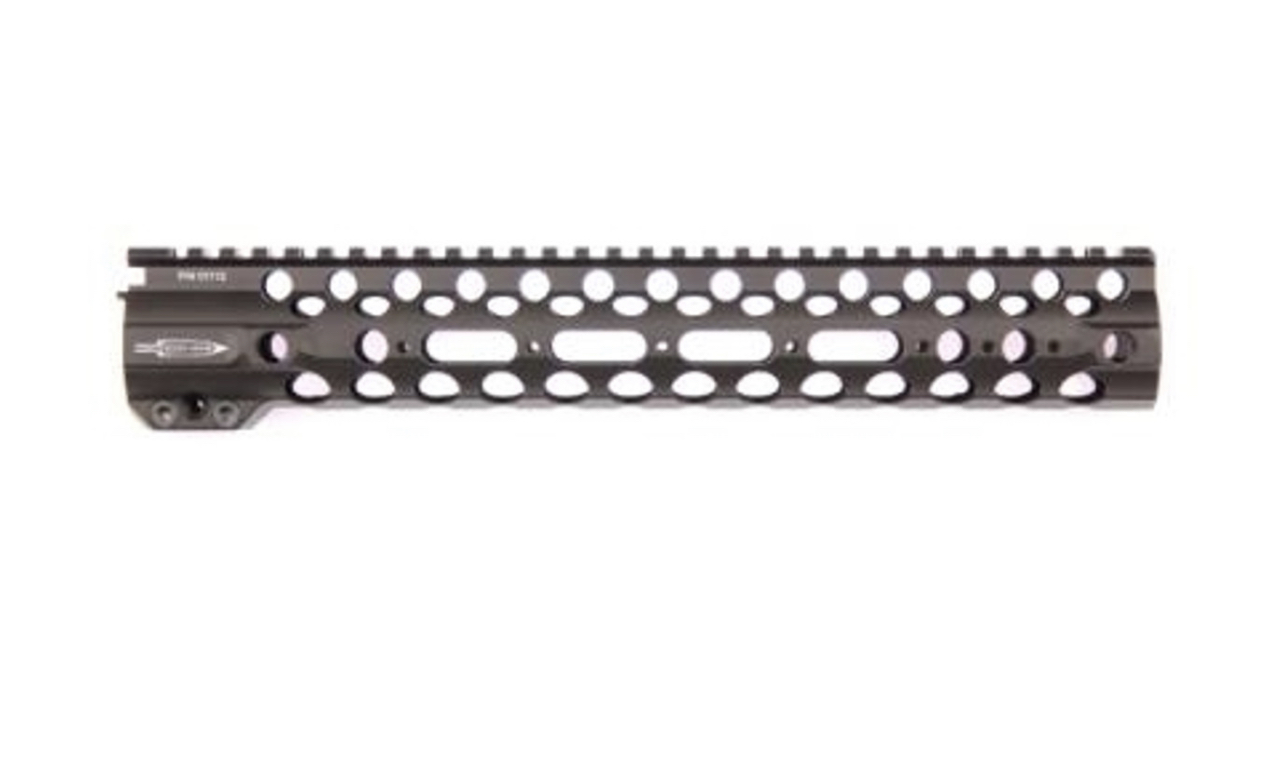

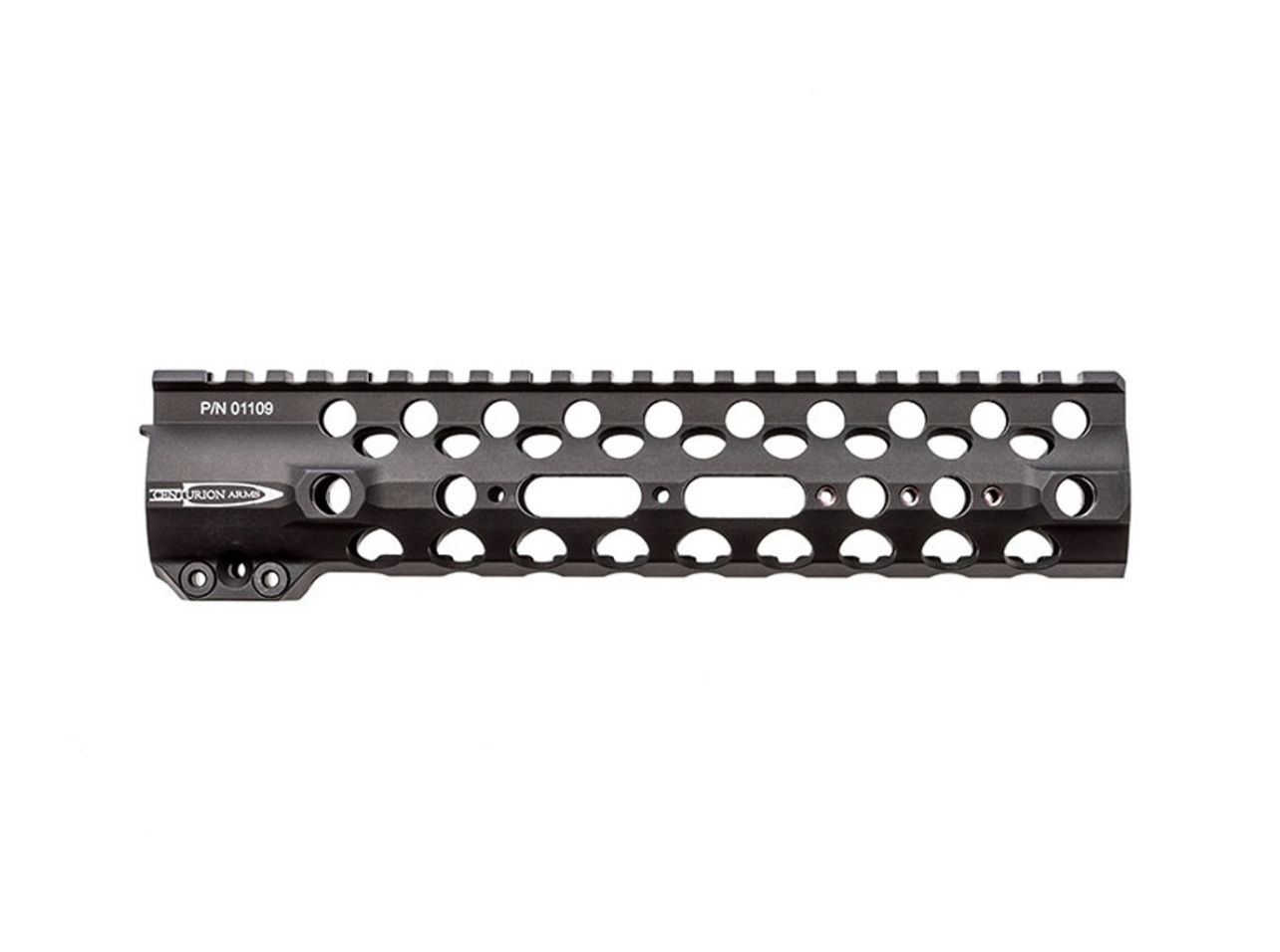

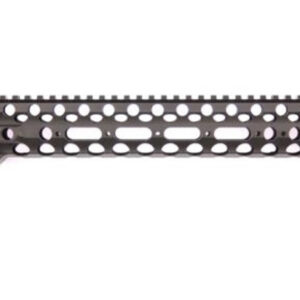

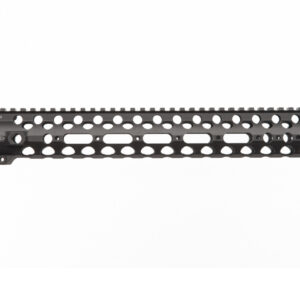

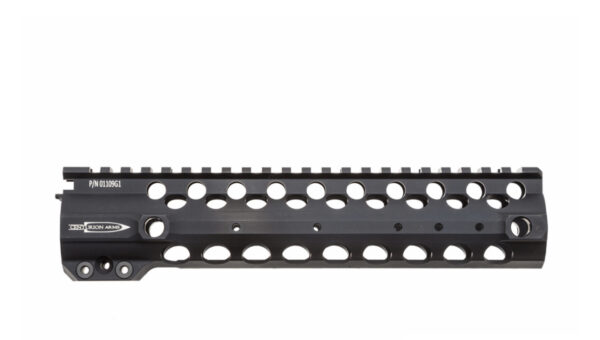

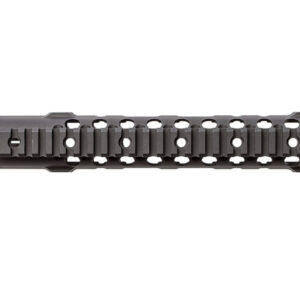

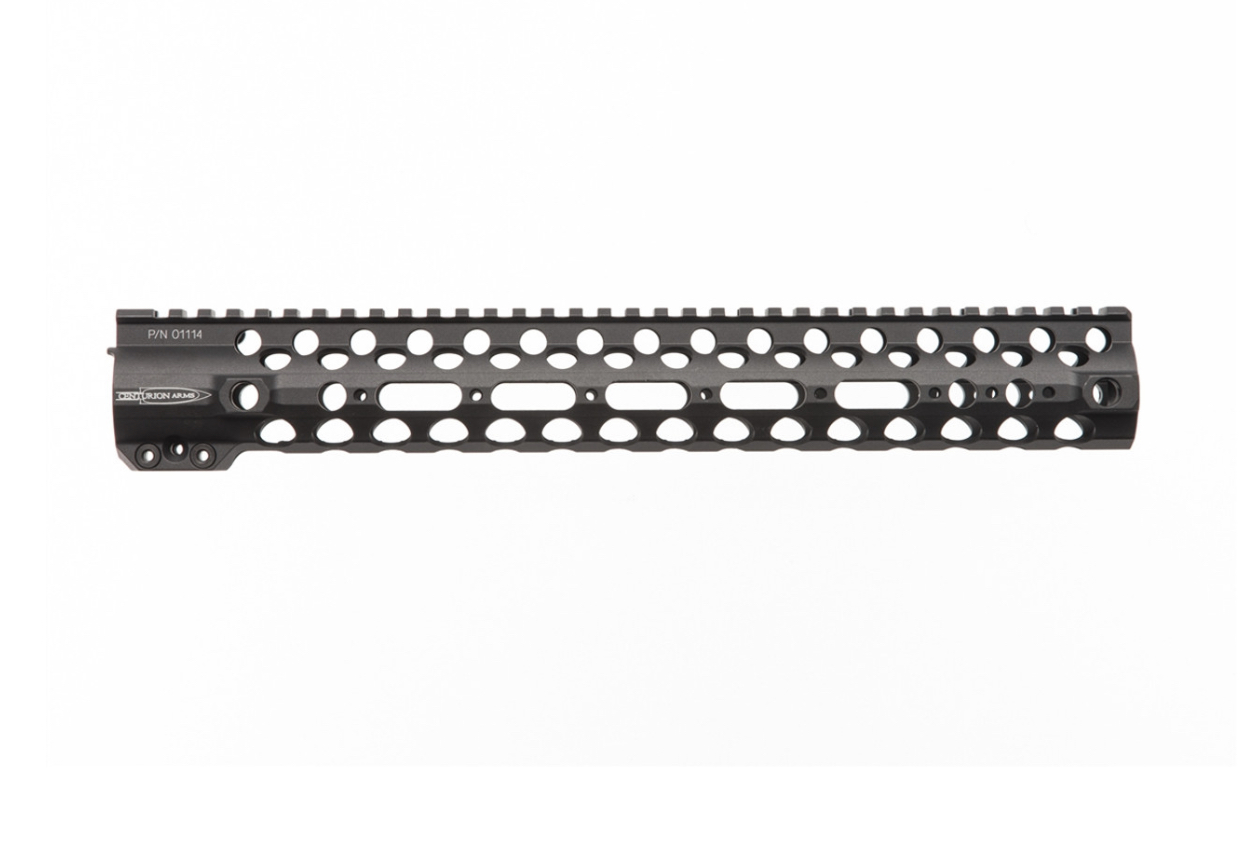

5.56 STANDARD CMR Rail

Our patented CMR rail system is a lightweight, rugged, one piece, free float hand guard that, when installed, gives the upper a continuous 12 o’clock rail.

The CMR system clamps to a proprietary barrel nut that can be installed on 5.56/.223 based AR platform systems. It was designed with the top 1913 rail for mounting the most common accessories, yet does away with the need for 1913 rail at the 3, 6, and 9 o’clock positions.

Here, other accessories can be directly mounted to it with a dedicated, simple, light-weight, mount. However, it does allow for 1913 rail to be added, if needed, for some less common accessories. Additionally, we built in anti-rotation QD sling swivels in 4 positions.

The main objective was to have a smaller, lighter weight, more ergonomic, hand guard that maintains or enhances functionality for the end user. As professional end users ourselves, we know the importance of keeping things simple and that was our design intent here… a K.I.S.S. (keep it simple, stupid) system.

Features:

Material: 6061 T6

Finish: Type III hard coat anodized

Integrated QD Attachment sockets – Limited Movement

G2 Weight:

9.5in-9.4oz with barrel nut | 7.3oz without barrel nut

11in-10.4oz with barrel nut | 8.3oz without barrel nut

12in-10.7oz with barrel nut | 8.6oz without barrel nut

13in-11oz with barrel nut | 9oz without barrel nut

14in-11.8oz with barrel nut | 9.6oz without barrel nut

Length:

9.5in (9.418″)

11in (10.994″)

12in (12.56″)

13in (13.688″)

14in (14.25″)

Width:

1.56 (body of tube) 1.75 (at QD sling swivels)

Height:

1.995″

Inside diameter:

1.12″

Rails: 1913 spec rail on top

Made in USA
